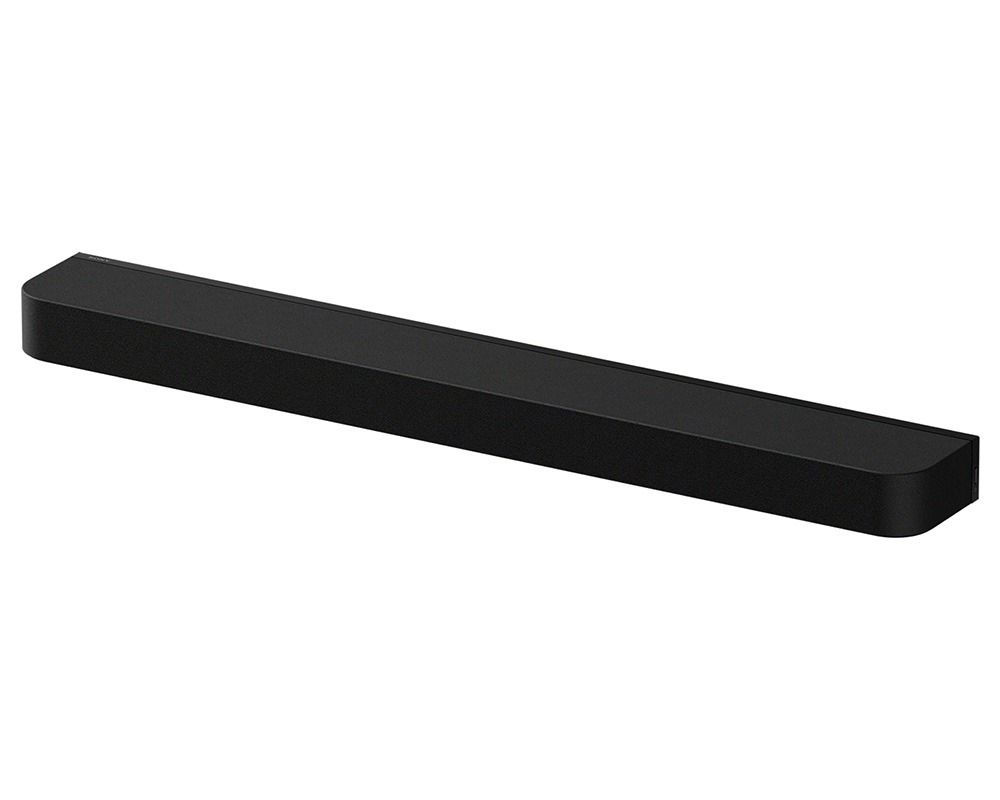

Sony HTA7100.CEK BRAVIA Theatre Bar 7 Soundbar with Dolby Atmos and DTS:X

Specifications

WHAT'S IN THE BOX        AC Cord

Batteries for remote control

Foot

HDMI Cable

Reference Guide

Remote Control

Wall mounting bracket

Wall mounting template

Warranty Card

MAIN UNIT SIZE - BODY ONLY (W x H x D)              950 x 64 x 125 mm

MAIN UNIT WEIGHT - BODY ONLY            4.6 kg

Amplifier Type   Digital Amplifier,S-Master

Amplifier Channels          9 ch

Wi-Fi®   Yes

IEEE802.11 version          a / b / g / n / ac / ax

BLUETOOTH® VERSION  6.0

BLUETOOTH® COMPATIBLE PROFILES      A2DP,AVRCP

BLUETOOTH® SUPPORTED CODECS          SBC,AAC,LDAC

Number of Input/Output               1 / 1 (eARC / ARC)

eARC     Yes

4K/60p/YUV4:4:4             Yes

HDR       Yes

Dolby Vision™ Compatible            Yes

HLG (hybrid log gamma)               Yes

HDCP2.2              Yes

VRR (Variable Refresh Rate)         Yes

ALLM (Auto Low Latency Mode) Yes

DSC (DISPLAY STREAM COMPRESSION)    Yes

SBTM (SOURCE-BASED TONE MAPPING) Yes

BRAVIA Sync       Yes

HDMI CEC           Yes

HDMI input         Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 2ch / 5.1ch / 7.1ch

HDMI eARC         Dolby Digital,Dolby Digital Plus,Dolby TrueHD,Dolby Atmos,Dolby Dual mono,DTS,DTS HD High Resolution Audio,DTS HD Master Audio,DTS ES,DTS 96 / 24,DTS: X,IMAX ENHANCED,LPCM: 2ch / 5.1ch / 7.1ch

BLUETOOTH® COMMUNICATION (RECEIVER)       AAC,SBC,LDAC

Sound Mode       Sound Field

Sound Effect      Night Mode,Voice Mode

Virtual Surround Technology       360 Spatial Sound Mapping

SOUND ENHANCEMENT TECHNOLOGY    DSEE Ultimate

Calibration          Yes

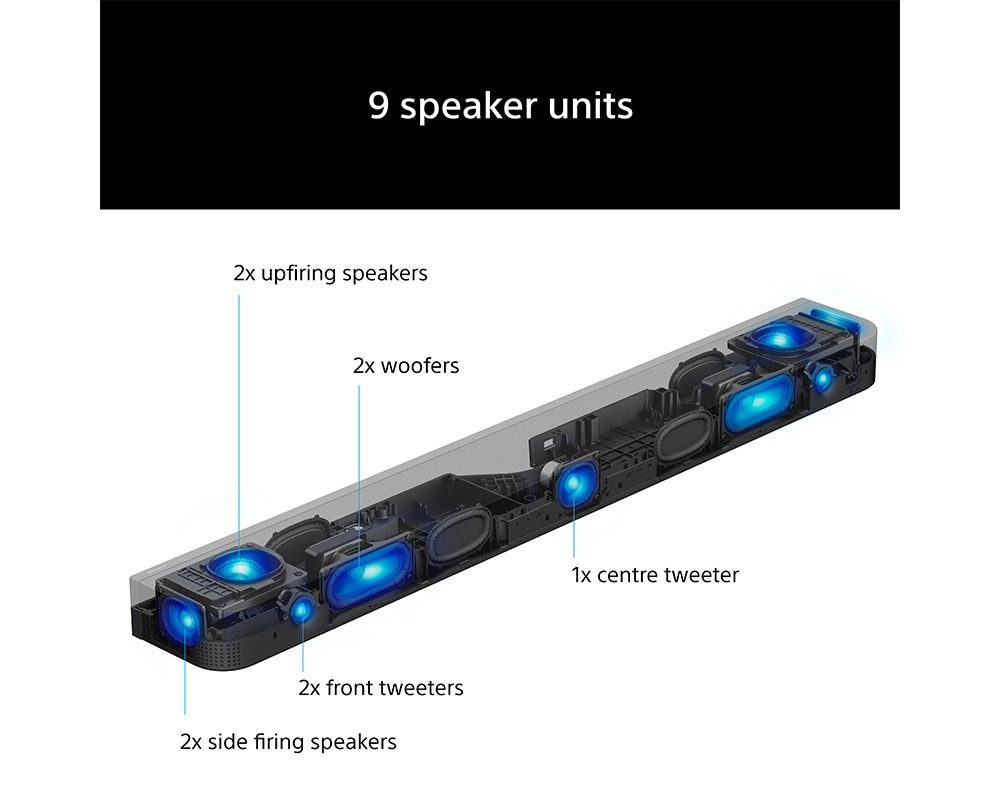

Speaker Structure            5.0.2 ch (9 Speaker Units)

bar speaker         HT-A7100

Network Function            Spotify Connect,AirPlay

Wireless Surround (with optional wireless speakers)         Yes

DUAL SUBWOOFER         Yes (w Option Woofer)

SONY | BRAVIA CONNECT            Yes

FUNCTION WITH BRAVIA              Voice Zoom,Quick Settings

POWER CONSUMPTION *APPROX             52 W

Wall-mountable                Yes

Power Consumption (Off Mode) Not available

POWER CONSUMPTION (STANDBY MODE / LOW POWER MODE) 0.5 W

OFF MODE / STANDBY MODE / LOW POWER MODE ACTIVATED  After 20 minutes

Power Consumption (Network Standby Mode) – Terminals            0.5 W (HDMI CEC) / 3.5 W (Bluetooth® function, Wi-Fi, all terminals and networks connected) *This product has a router function which can forward audio data via Wi-Fi to another Sony audio product.

Networked Standby Mode Activated – Terminals               After 20 minutes (HDMI CEC, Bluetooth® function, Wi-Fi)

Wireless Network(s) On/Off Switch          ·Press INPUT, Volume -, Volume +, and INPUT in that order on the supplied remote control to turn off the Bluetooth® and Wireless LAN functions. ·Press INPUT, Volume -, Volume +, and INPUT again in that order on the supplied remote control to turn on the Bluetooth® and Wireless LAN functions.
