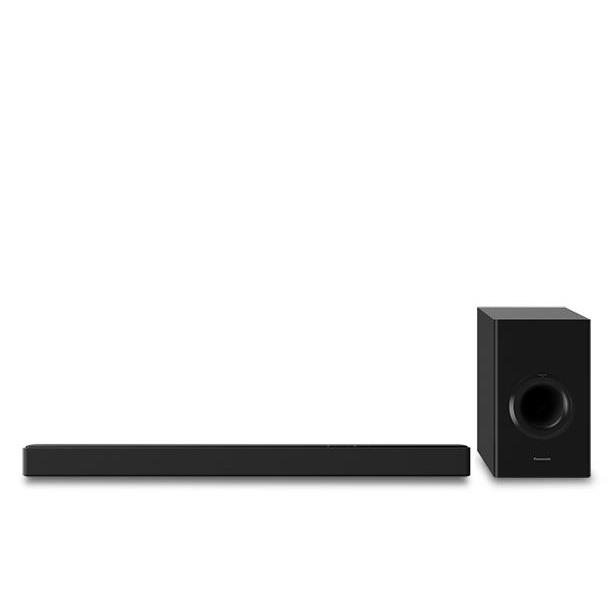

Panasonic SC-HTB488EB-K Sound Bar - Black

AUDIO SYSTEM

Output Channel 2.1ch

Power Output - Home Theater Mode (RMS) Total Power 200W

Front 50W/ch (1kHz, 6ohms, 10% THD)

Center -

Surround -

Subwoofer 100W (100Hz, 3ohms, 10% THD)

Dolby Digital yes

Dolby Pro Logic II/ Dolby Virtual Speaker -

DTS Digital Surround yes

SMART NETWORKING & EASY OPERATION

Wireless LAN System -

Ethernet (10 Base-T/ 100 Base-TX) -

Bluetooth® Wireless Technology yes

Panasonic Music Streaming App yes*1

NFC (One-Touch Connection) -

Wireless Subwoofer yes

ARC (Audio Return Channel) yes*3

HDMI-CEC yes

DESIGN

Wall-mountable yes

FRONT

Configuration 1-wayes 1 speaker, Bass-reflex

Speaker Unit Full Range: 4.5 x 12 cm Cone Type

CENTURE

Configuration -

Speaker Unit -

SURROUND

Configuration -

Speaker Unit -

SUBWOOFER

Configuration 1-wayes 1 speaker, Bass-reflex

Speaker Unit Woofer: 16 cm Cone Type

TERMINAL

HDMI Output yes (ARC*3)

HDMI Input -

Optical Digital Audio Input yes

Analogue Audio Input (AUX) Pin Jack -

OTHERS

Power Supply AC 220-240V, 50Hz

Power Consumption - Front Normal Use 19W

Standby (Bluetooth standby off) 0.5W*4

Power Consumption - Subwoofer Normal Use 18W

Standby (Power switch off) 0.5W

Display LED

Remote Control yes

Front Speaker

Dimensions (W x H x D) 853 x 60.5 x 90 mm

Weight 1.9 kg

Subwoofer

Dimensions (W x H x D) 185 x 303 x 337 mm

Weight 4.3 kg

NOTE *1 Download on the App Store. Download on Google Play™.

NOTE *2 To use NFC without downloading App, an OS Version 4.1 or later AndroidTM device is required.

NOTE The installation of the Panasonic Music Streaming App allows use of an Android smartphone or tablet with the NFC function and OS Version 4.1 or earlier.

NOTE *3 ARC compatible TV is required.

NOTE *4 The other connected devices have to be turned off. Standby (Bluetooth standby on) power consumption approximately 2.0W.

NOTE Specifications are subject to change without notice. All numbers given here are approximate.
