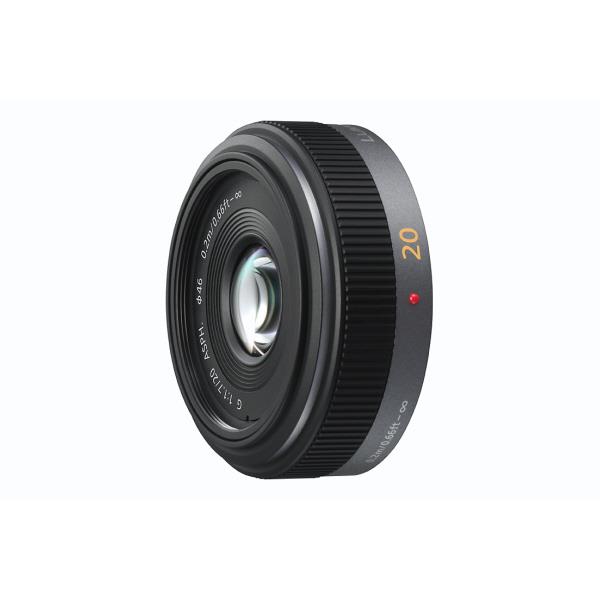

Panasonic HH020E 20mm - 40mm Interchangeable Lens
Product information "Panasonic HH020E 20mm - 40mm Interchangeable Lens"
Product Features
- Product Type: 20mm - 40mm Pancake lens
- Mount: Micro Four Thirds
- Aperture Range: F1.7 - F16
- Closest Focusing Distance: 0.2m / 0.66ft
- Filter Size: 46mm
- Overall Length: 25.5mm from the tip of the lens to the base side of the lens mount
Full Specification
A Compact and Lightweight Pancake Lens with F1.7 Brightness
2 A spherical Lenses for a Superb Optical Performance
Suitable for a Wide Variety of Occasions with 40mm of Focal Distance
Contrast AF System Support
Circular Aperture Diaphragm and Durable Metal Mounting
Multi-coated Lens Elements That Reduce Ghosts and Flare
A Compact and Lightweight Pancake Lens Based on the Micro Four Thirds System Standard
The LUMIX G 20mm / F1.7 ASPH., a pancake interchangeable lens, is based on the Micro Four Thirds System standard. It features a compactness and light weight despite its F1.7 brightness allowing a beautiful soft focus for photos to be even more impressive.
Comprising of 7 lenses in 5 groups, the lens system uses 2 aspherical lenses most effectively to minimize both distortion and chromatic aberrations, achieving high resolution corner to corner.
The versatile 40mm of focal distance (35mm camera equivalent) is suitable for a wide variety of occasions from daily snapshots including sceneries like sunsets and dimly lit indoor shots to the deliberately creative shots taking advantage of its beautiful soft focus.
When mounted on the LUMIX G Micro System Cameras, the LUMIX G 20mm / F1.7 ASPH. allows use of the advanced contrast AF system, which includes a Face Recognition function, for more convenient, more enjoyable shooting.
Features -
Lens Construction 7 elements in 5 groups (2 A spherical lenses)
Mount Micro Four Thirds mount
Focal Length f=20mm (35mm camera equivalent 40mm)
Aperture Type 7 diaphragm blades / Circular aperture diaphragm
Aperture Range F1.7
Minimum Aperture F16
Closest Focusing Distance 0.2m / 0.66ft
Maximum magnification Approx. 0.13x / 0.25x (35mm camera equivalent)
General -
Diagonal Angle of View 57°
Filter Size f46mm / 1.81 in
Max.Diameter f63mm / 2.48 in
Overall Length Approx. 25.5mm / 1.00 in (from the tip of the lens to the base side of the lens mount)
Weight [g] 100.0
Weight [oz] 3.53
Further Specifications -
Standard Accessories Lens Cap, Lens Rear Cap, Lens Storage Bag
