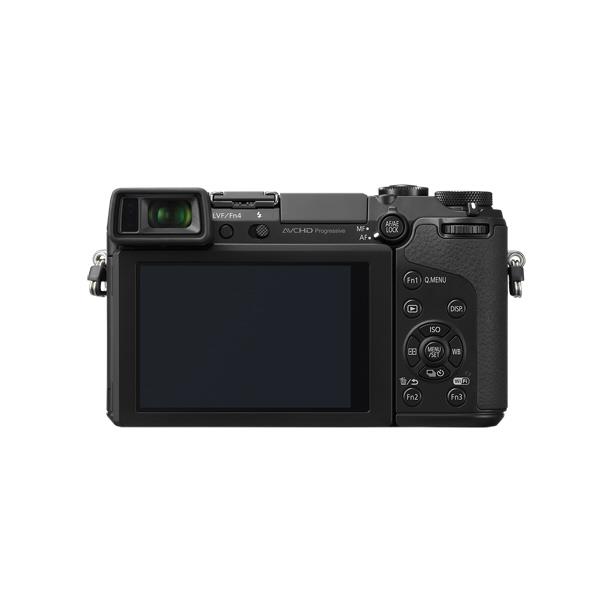

Panasonic DMCGX7CEBK 16.84 Megapixel Digital Camera

TYPE

Type Digital Single Lens Mirror less camera

Recording media SD memory card, SDHC memory card, SDXC memory card (Compatible with UHS-I standard SDHC/SDXC memory cards)

Image sensor size 17.3 x 13.0 mm (in 4:3 aspect ratio)

Lens Mount Micro Four Thirds mount

IMAGE SENSOR

Type Live MOS Sensor

Total pixels 16.84 Megapixels

Camera effective pixels 16.00 Megapixels

Colour filter Primary colour filter

Dust reduction system Supersonic wave filter

IMAGE STABILIZATION SYSTEM

Image Stabilization System Image Sensor Shift Type

RECORDING SYSTEM

Recording file format Still Image: JPEG(DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds standard)

Aspect ratio 4:3, 3:2, 16:9, 1:1

Image quality RAW, RAW+Fine, RAW+Standard, Fine, Standard, MPO+Fine, MPO+Standard (When attaching 3D lens in Micro Four Thirds System standard)

Colour Space sRGB, Adobe RGB

File size(Pixels) Still Image [4:3] 4592x3448(L) / 3232x2424(M) / 2272x1704(S) / 1824x1368(When attaching 3D lens in Micro Four Third System standard)

Motion Image*1 (MP4*2 : NTSC area) [Full HD]1920×1080, 60fps (sensor output is 60p, 28Mbps)

Motion Image*1 (MP4*2 : PAL area) [Full HD] 1920×1080, 50fps (sensor output is 50p, 28Mbps)

Motion Image (AVCHD Progressive : NTSC area) [Full HD]1920×1080, 60p (sensor output is 60p, 28Mbps)

Motion Image (AVCHD Progressive : PAL area) [Full HD] 1920×1080, 50p (sensor output is 50p, 28Mbps)

Motion Image*1 (AVCHD*2 : NTSC area) [Full HD] 1920x1080, 60i (sensor output is 60p, 17Mbps)

Motion Image*1 (AVCHD*2 : PAL area) [Full HD] 1920x1080, 50i (sensor output is 50p, 17Mbps)

Continuous recordable time (Motion images)*1 AVCHD : Approx. 140 min with H-FS1442A

Actual recordable time (Motion images) AVCHD : Approx. 70 min with H-FS1442A

Flicker reduction [1/50] / [1/60] / [1/100] / [1/120] / OFF

WiFi FUNCTION

WiFi IEEE 802.11b/g/n, 2412MHz - 2462MHz (11ch), Wi-Fi / WPA / WPA2, Infrastructure mode

NFC ISO/IEC 18092, NFC-F(Passive Mode)

VIEWFINDER

Tilting

Type LCD Live View Finder (2,764,800 dots equivalent)

Field of view Approx. 100%

Magnification Approx. 1.39x / 0.7x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m -1

Eye point Approx.17.5mm from eyepiece lens

Dioptre adjustment -4.0~+3.0(dpt)

Eye sensor

Eye sensor adjustment High / Low

FOCUS

Type Contrast AF system

Focus mode AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF

AF mode Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint

AF detective range EV -4 - 18 (ISO100 equivalent)

AF assist lamp

AF lock Set the Fn button in custom menu to AF lock

Others Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch AF/AE Function, Touch Pad AF, Touch shutter, MF Assist, Touch MF Assist, One Shot AF,

EXPOSURE CONTROL

Light metering system 1728-zone multi-pattern sensing system

Light metering mode Multiple / Centre Weighted / Spot

Metering range EV 0 - 18 (F2.0 lens, ISO100 equivalent)

Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual,

ISO sensitivity (Standard Output Sensitivity) Auto / Intelligent ISO / 125(Extended) / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Changeable to 1/3 EV step)

Exposure compensation 1/3EV Step ±5EV

AE lock Set the Fn button in custom menu to AE lock

AE bracket 3,5,7 frame, in 1/3 or 2/3 or 1EV Step, Max.±3 EV

WHITE BALANCE

White balance Auto / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2 / Colour temperature setting

White balance adjustment Blue/amber bias, Magenta/green bias

Colour temperature setting 2500-10000K in 100K

White balance bracket 3 exposures in blue/ amber axis or in magenta/ green axis

SHUTTER

Type Focal-plane shutter

Shutter speed Still Images: Bulb (Max.2min), 1/8000 ~ 60

Self timer 10sec, 3 images/ 2sec / 10sec

SCENE GUIDE

Still image Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky /

Video Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky /

BURST SHOOTING

Number of recordable images 9 images (when there are RAW files with the particular speed)

Burst speed Mechanical Shutter - H: 5.0 frames/sec(with AFS), 4.3 frames/sec(with AFC, In 1-area-focusing AF mode), M: 4.0 frames/sec with Live View, L: 2.0 frames/sec with Live View

BUILT-IN-FLASH

Type TTL Built-in Flash, GN7.0 equivalent (ISO 200 ·m), GN5.0 equivalent (ISO 100 ·m), Built-in Pop-up

Flash Mode Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off

Synchronization speed Less than 1/320 second

Flash synchronization 1st. Curtain Sync, 2nd Curtain Sync.

LCD MONITOR

Type Tilt Static LCD with Touch Monitor

Monitor size 3.0inch (7.5cm)/ 3:2 Aspect / Wide-viewing angle

Pixels Approx. 1040K dots

Filed of view Approx. 100%

Monitor adjustment Brightness, Contrast and Saturation, Red tint, Blue tint

LIVE VIEW

Digital zoom 2x, 4x

Extra Tele Conversion Still image: Max.2x (Aspect ratio sets at 4:3. Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.)

Other functions Guide Lines (3 patterns)

LEVEL GAUGE

Level Gauge

DIRECTION DETECTION FUNCTION

Direction Detection Function

FUNCTION BUTTON

Fn1, Fn2, Fn3, Fn4, Fn5, Fn6, Fn7, Fn8, Fn9 WiFi / Q.MENU / LVF/Monitor Switch / AF/AE LOCK / AF-ON / One Push AE / Touch AE / Preview / Level Gauge / Focus Area Set / Zoom Control / Photo Style / Aspect Ratio / Picture Size / Quality / Metering Mode / Highlight Shadow /

CREATIVE CONTROL

Still image Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome / Silky Monochrome / Impressive Art /

Video Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy POP / Bleach Bypass / Miniature Effect / Fantasy / One Point Colour

CREATIVE VIDEO MODE

Exposure Mode Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure

PHOTO STYLE

Still image and Video Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom

PLAYBACK

Playback mode Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (16x Max.), Slideshow (duration & effect is selectable),

IMAGE PROTECTION / ERASE

Protection Single / Multi, Cancel

Erase Single / Multi / All / Except Favourite

PRINT

Direct Print PictBridge compatible

INTERFACE

USB USB 2.0 High Speed Multi

HDMI miniHDMI TypeC / VIERA Link

Audio video output Monaural Type, NTSC/PAL, NTSC only for North America

Microphone Stereo

Remote input f2.5mm for Remote

Speaker Monaural

LANGUAGE

OSD language Japanese, English, German, French, Italian, Spanish

POWER

Battery Li-ion Battery Pack (7.2V, 1025mAh) (Included)

Battery life (CIPA standard) Approx. 320 images with H-H020A

DIMENSIONS / WEIGHT

Dimensions (W x H x D) 122.60x 70.7 x 54.6 mm / 4.83 x 2.78 x 2.15 inch

Weight Approx. 402g / 0.89 lb (SD card, Battery, Body)

OPERATING ENVIRONMENT

Operating temperature 0º to 40º (32°F to 104°F)

Operating humidity 10% RH to 80% RH

STANDARD ACCESSORIES

Software PHOTOfunSTUDIO 9.2 PE (Windows XP/Vista/7/8)

Standard accessories Battery pack, Battery Charger, Body Cap, Lens Cap, Lens Hood, Lens Rear Cap,

INTERCHANGEABLE LENS-1

Lens Name LUMIX G 20mm / F1.7 ? ASPH.

Lens Construction 7 elements in 5 groups (2 Aspherical lenses)

Mount Micro Four Thirds mount

Focal Length f=20mm (35mm camera equivalent 40mm)

Aperture Type 7 diaphragm blades / Circular aperture diaphragm

Aperture F1.7

Minimum Aperture F16

Closest Focusing Distance 0.2m / 0.66ft

Maximum magnification Approx. 0.13x / 0.25x (35mm camera equivalent)

Diagonal Angle of View 57°

General Filter Size f46mm / 1.81 in

Max. Diameter f63mm / 2.48 in

Overall Length Approx. 25.5mm / 1.00 in (from the tip of the lens to the base side of the lens mount)

Weight [g] Approx. 87g (excluding lens cap and lens rear cap)

Weight [oz] Approx. 3.07oz (excluding lens cap and lens rear cap)

NOTE *1 Videos can be recorded continuously for up to 29 min 59 sec in Europe and some Asia areas. Continuous recording exceeding 4GB or 29 min 59 sec is not possible when recording MP4. For Full HD in MP4, the recordable time will drop below 29 min 59 sec.
