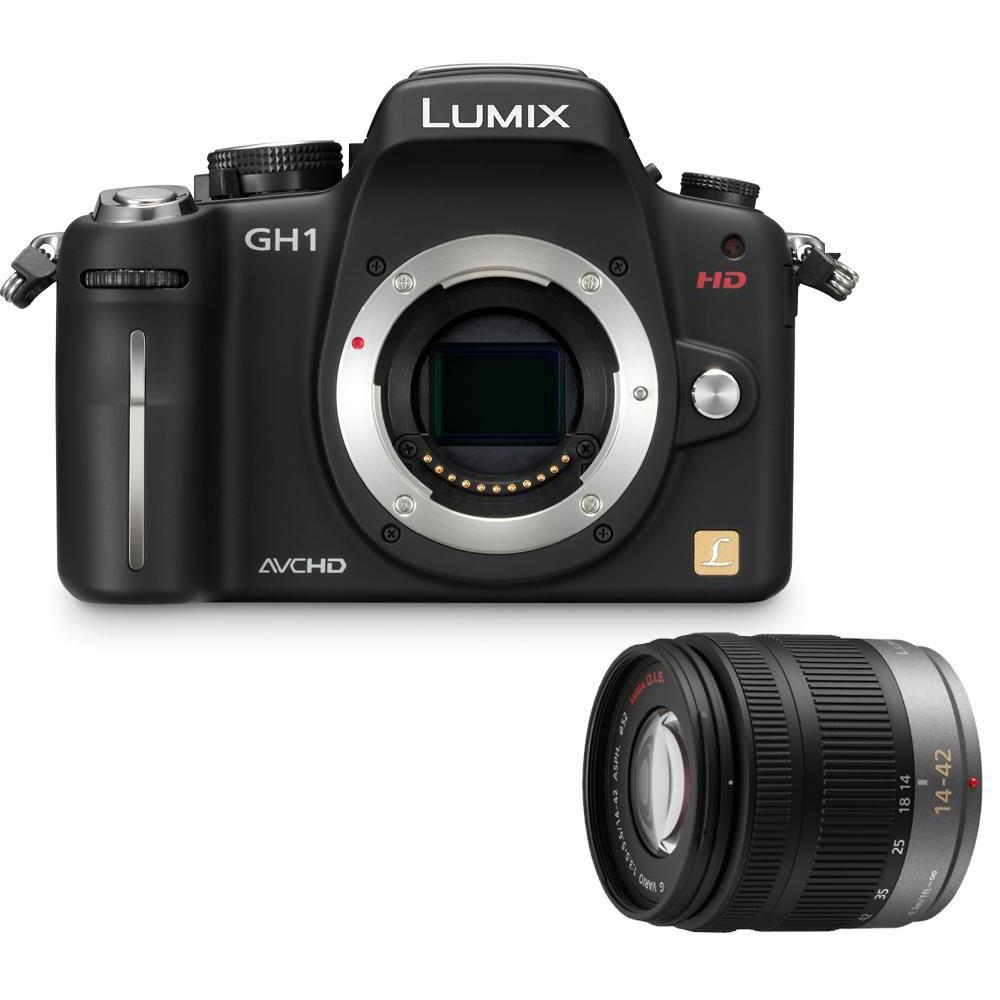

Panasonic DMCGH1KEB9K 12.1 Megapixel Digital Camera in black

Product information "Panasonic DMCGH1KEB9K 12.1 Megapixel Digital Camera in black"

Panasonic DMCGH1KEB9K 12.1 Megapixel Digital Camera

LUMIX G Micro System Digital Camera GH1 - Creative HD Hybrid with photo quality of DSLR and Full-HD movie

The DMC-GH1 is not just a high performance still picture camera. Amazingly it can record Full-HD movies at 1080/25p or smooth HD movies at 720/50p in AVCHD with a continuous AF function. It also features a stereo microphone, featuring Dolby Digital Stereo Creator to record high quality audio. Just press the 'one touch' Motion Picture button, and shooting begins. In the unique Creative Movie mode, the shutter speed and aperture can be adjusted. When the DMC-GH1 is connected to a Panasonic VIERA via an optional mini HDMI cable, the TV's remote control unit can be used to enjoy playing back with a greater convenience.

The DMC-GH1's 4/3-type Live MOS sensor with 12.1 megapixels gives you superior image quality with low power consumption. It also adds a high-speed readout for recording HD movies. You can record images with 4:3, 3:2 or 16:9 aspect ratio. In each, you get the same angle of view and same outstanding image quality. The Venus Engine HD incorporates two CPUs. This not only boosts image processing speed but also helps achieve an exceptional noise-reduction performance. Also, the two CPUs allow long-time movie recording in AVCHD with low power consumption.

The DMC-GH1 kit is equipped with the LUMIX G VARIO HD 14-140mm/F4.0-5.8 ASPH./MEGA O.I.S. lens. This compact lens boasts a focal length of 28-280mm (35mm camera equivalent) and supports a continuous AF function that works for both photos and movies. The Aperture adaptively adjusts to each scene, letting you capture the kind of delicate, softly focused movies that only a digital interchangeable lens camera can produce. Thanks to a silence design that helps suppress lens drive noise, the DMC-GH1 with its kit lens records sounds with amazing clarity.

The DMC-GH1 features a flexible Contrast AF system which is not only accurate, but also very fast. Adding a Face Recognition function to Face Detection AF/AE, the iA Mode offers a combination of functions that automatically makes it easy for anyone to take beautiful photos. Furthermore, the iA Mode can also be activated in movie recording. It automatically determines the most suitable Scene mode and helps correct blurring, focus, and brightness problems for bright, sharply focused HD movies.

The DMC-GH1 can be fitted with a mount adapter DMW-MA1 (optional) that allows the use of a wide variety of high-performance Four Thirds lenses, including Leica D lenses. Naturally, the shooting functions of DMC-GH1 remain usable with the DMW-MA1 mounted.* *Lenses other than LUMIX G lenses cannot use the Tracking AF, AFc (Auto Focus Continuous) or Continuous AF functions. Also, when a lens that does not support the Contrast AF function is mounted, operation will automatically switch to manual focus.


Full Specification

Type -

Camera Type Digital interchangeable lens system camera

Recording media SD memory card, SDHC memory card

Image sensor size 17.3 x 13.0 mm

Mount Micro Four Thirds mount

Image Sensor -

Type Live MOS Sensor

Total pixels 14.0 Megapixels

Camera effective pixels 12.1 Megapixels

Colour filter Primary colour filter

Dust reduction system Supersonic wave filter

Recordings System -

Recording file format Still Image: JPEG(DCF, Exif 2.21), RAW, DPOF compatible / Still Image with Audio: JPEG(DCF, Exif 2.21) + Quicktime / Motion Image: AVCHD / QuickTime Motion JPEG

Aspect ratio 4:3, 3:2, 16:9, 1:1 (Multi-aspect recording except 1:1)

File size(Pixels)

Still Image [4:3] 4000 x 3000(L), 2816 x 2112(M), 2048 x 1536(S) / [3:2] 4128 x 2752(L), 2928 x 1952(M), 2064 x 1376(S) / [16:9] 4352 x 2448(L), 3072 x 1728(M), 1920 x 1080(S) / [1:1] 2992 x 2992(L), 2112 x 2112(M), 1504 x 1504(S)

Motion Image Motion Jpeg [4:3] QVGA : 320 x 240, 30fps / VGA : 640 x 480, 30fps / Motion Jpeg [16:9] WVGA : 848 x 480, 30fps / Motion Jpeg [HD] 1280 x 720, 30fps / AVCHD NTSC [Full HD] 1920 x 1080, 60i (sensor output is 24fps)(FHD: 17Mbps) / AVCHD NTSC [HD] 1280 x 720, 60p (SH: 17Mbps, H: 13Mbps, L: 9Mbps) / AVCHD PAL [Full HD] 1920 x 1080, 50i (sensor output is 25fps)(FHD: 17Mbps) / AVCHD PAL [HD] 1280 x 720, 50p (SH: 17Mbps, H: 13Mbps, L: 9Mbps)

Image quality RAW, RAW+Fine, RAW+Standard, Fine, Standard

Colour space sRGB, Adobe RGB

Viewfinder -

Type Live View Finder (1,440,000 dots equivalent)

Field of view Approx. 100%

Magnification Approx. 1.4x / 0.7x (35mm camera equivalent) with 50mm lens at infinity; -1.0 m-1

Eye point Approx.17.5mm from eyepiece lens

Diopter adjustment -4.0 ~ +4.0 m-1

Auto Focus -

Type Contrast AF system

Focusing mode AFs/AFc/MF

AF mode Face detection/ AF Tracking / 23-area-focusing / 1-area-focusing

AF detective range EV 0-18 (F3.5 lens, ISO 100)

AF assist lamp yes

AF lock AF/AE LOCK button or Shutter button halfway pressed in AFs mode

Others Pre AF (Quick AF/Continuous AF), AF+MF, MF Assist (5x, 10x)

Exposure Control -

Light metering system 144-zone multi-pattern sensing system

Light metering mode Intelligent Multiple / Center Weighted / Spot

Metering range EV 0-18 (F2.0 lens, ISO 100)

Exposure mode Program AE, Aperture Priority AE, Shutter Priority AE, Manual

ISO sensitivity Auto / 100 / 200 / 400 / 800 / 1600 / 3200 / Intelligent ISO

Exposure compensation 1/3EV Step ±3EV

AE lock AF/AE LOCK button or Shutter button halfway pressed

AE bracket 3,5,7 frame, in 1/3 or 2/3 EV Step, ±2 EV

White Balance -

White balance Auto / Daylight / Cloudy / Shade / Halogen / Flash / White Set 1,2 / Color temperature setting

White balance adjustment Blue/amber bias, Magenta/green bias

Colour temperature setting 2500-10000K in 100K

White balance bracket 3 exposures in blue/amber axis or in magenta/green axis

Shutter System -

Type Focal-plane shutter

Shutter speed Still Images: 1/4000 ~ 60 and Bulb (up to approx. 4minutes)

Self timer 2sec / 10sec / 10sec, 3 images

Remote control Remote control with bulb function by DMW-RSL1 (Optional)

Scene Mode -

Movie SCN mode Portrait / Scenery / Sports / Low Light / Close-up (Flower/Food/Objects/Macro) / SCN (Sunset/Party/Portrait) / (Activated by selecting Still Image SCN mode then pressing Movie Button. Still Image SCN modes without corresponding Movie SCN mode is recorded in Normal mode.)

Still Image SCN mode Portrait (Normal/Soft Skin/Outdoor/Indoor/Creative) / Scenery (Normal/Nature/Architecture/Creative) / Sports (Normal/Outdoor/Indoor/Creative) / Close-up (Flower/Food/Objects/Creative) / Night Portrait (Night Portrait/Night Scenery/Illuminations/Creative) / SCN (Sunset/Party/Baby 1,2/Pet)

Burst Shooting -

Burst speed 3 frames/sec (High speed) or 2 frames/sec (Low speed)

Number of recordable images 7 images (when there are RAW files with the particular speed) / Unlimited consecutive shooting (when there are no RAW files) / (depending on memory card size, battery power, picture size, and compression)

Built-in Flash -

Type TTL Built-in-Flash, GN11 equivalent (ISO 100 ·m), Built-in Pop-up

Built-in flash(Mode) Auto, Auto/Red-eye Reduction, Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction, Forced Off

X-Sync(Synchronization) Speed Less than 1/160 second

Flash output adjustment 1/3EV Step ±2EV

Flash synchronization 1st. Curtain Sync, 2nd Curtain Sync.

Hot shoe TTL Auto with FL220/FL360/FL500(Optional)

LCD Monitor -

Type Low temperature Polycrystalline TFT LCD

Monitor size Free-angle 3.0inch / 3:2 Aspect / Wide viewing angle

Pixels 460K dots

Filed of view Approx. 100%

Monitor adjustment Auto, Power LCD, Manual (7 levels)

OSD language English, German, French, Italian, Spanish, Japanese

Live View -

Digital zoom 2x, 4x

Extra optical zoom Max.2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.)

Real-time Histogram YES

Guide Lines Guide Lines (3 patterns)

Film Mode -

Colour Standard / Dynamic / Nature / Smooth / Nostalgic / Vibrant

Black and white Standard / Dynamic / Smooth

Others My Film1 / My Film2 / Multi Film

Playback -

Playback mode Normal playback / 30-thumbnail display / 12-thumbnail display / Calendar display / Zoomed playback (16x Max.) / Slideshow (duration & effect is selectable) / Playback Mode (Normal/Picture/AVCHD/Motion JPEG/Face Recognition/Favourite) / Title Edit / Text Stamp / Resize / Trimming / Aspect Conversion / Rotate / Rotate Display / Print Set / Protect / Audio Dubbing

Protection / Erase -

Protection Single / Multi or Cancel

Erase Single / Multi / All / Except Favourite

Direct Print -

Print PictBridge compatible Print size, Layout, Date setting is selectable )

Interface -

HDMI miniHDMI TypeC (1.3b corresponding) Video: Auto / 1080i / 720p / 480p (576p in PAL system) Audio: Dolby® Digital Stereo Creator

USB USB 2.0 High Speed

Speaker YES

Microphone Stereo, Wind-cut: Off / Low / Standard / High

Remote/External Microphone input f2.5mm. stereo mini jack

Audio video output Stereo Type, NTSC/PAL, NTSC only for North America *Check the website of the Panasonic sales company in your country or region for details on the products that are available in your market.
