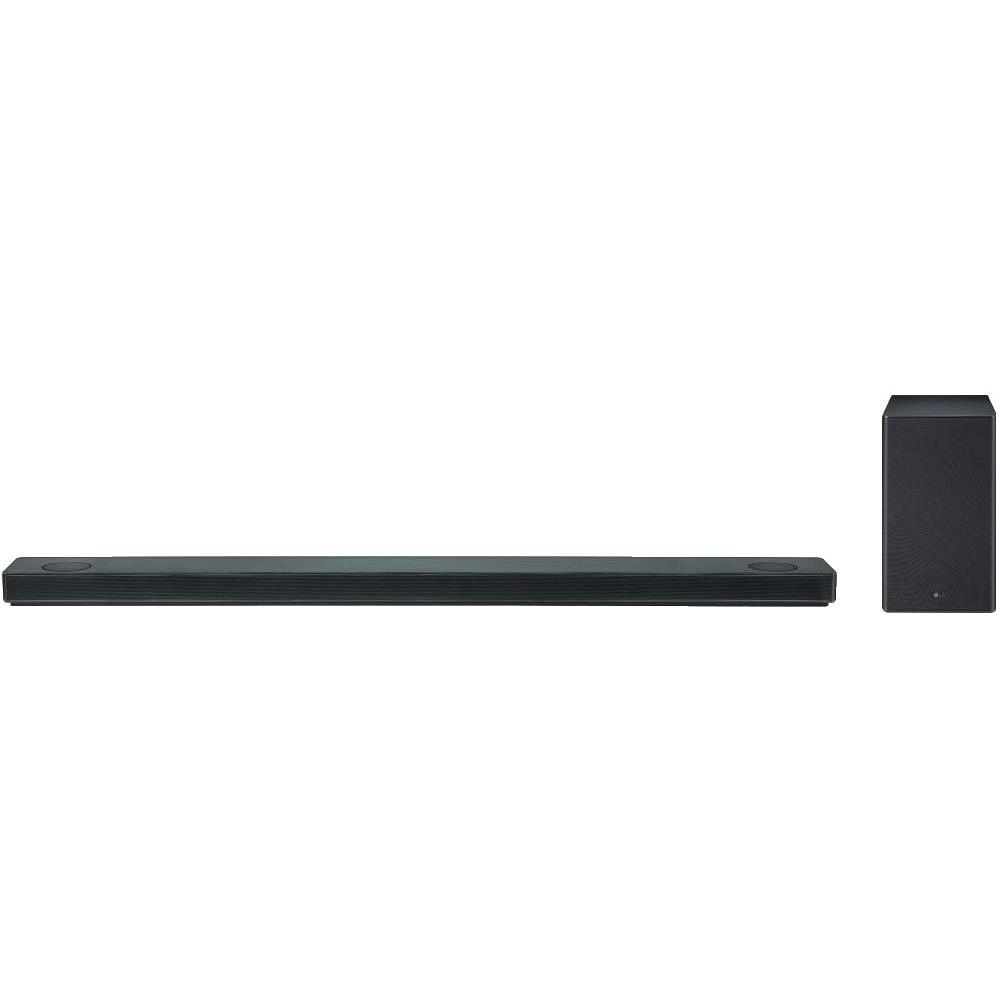

LG SK10Y 550W Dolby Atmos Soundbar with Wireless Subwoofer and MERIDIAN Technology

Product Features

Channel 5.1.2ch

Output Power (Total) 550W

Output Power (Front) 50W x 2

Output Power (Centre) 50W

Output Power (Surround) 50W x 2

Output Power (Top) 50W x 2

Output Power (Subwoofer) 200W (Wireless)

Audio DAC Yes (192kHz/24bit)

Main (SPL) 82dB

Main (System) Closed



Full Specifications

Type Sound Bar With Meridian Technology

Brand LG

Model SK10Y SK10YDGBRLLK 5.1.2 ch High Res Audio

CHANNEL / OUTPUT POWER

Channel 5.1.2ch

Output Power (Total) 550W

Output Power (Front) 50W x 2

Output Power (Centre) 50W

Output Power (Surround) 50W x 2

Output Power (Top) 50W x 2

Output Power (Subwoofer) 200W (Wireless)

Audio DAC Yes (192kHz/24bit)

SPEAKER

Main (SPL) 82dB

Main (System) Closed

Main (Tweeter Unit Front Only) 20mm AL Dome

Main (Woofer Unit) 40 x 100mm

Main (Impedance) 4ohm

Main (Magnetic Shielding) Non-Shield

Top (SPL) 80dB

Top (System) Closed

Top (Woofer Unit) 2.5"

Top (Impedance) 7ohm

Top (Magnetic Shielding) Non-Shield

Subwoofer (SPL) 85dB

Subwoofer (System) Bass Reflex

Subwoofer (Woofer Unit) 7 inch

Subwoofer (Impedance) 3ohm

Subwoofer (Magnetic Shielding) Non-Shield

NETWORK

WiFi Band Width (2.4G / 5G) Yes

CONNECTIVITY

Portable In (3.5Ø) Yes

Optical Yes (x1)

HDMI 2.0 (HDCP 2.2) Yes (x2)

4K pass through (In / Out) Yes (x1)

USB Port Yes (Service Only)

Bluetooth 4.0 Yes

Ethernet Port Yes

WiFi Yes

INFOMRATION DISPLAY

Display Type LCD (8 char.)

LED indicator Colour 2 colour LED (Red/White)

SOUND MODES

Hi-Res Audio (24bit/192kHz) Yes

Hi-Res Audio (24bit/96kHz) Yes

Hi-Res Audio (Upbit/upsampling to 24bit/192kHz) Yes

Google Multi Zone (Group Play Mode (one source --> multi speaker)) Yes

Sound Effect (ASC (Adaptive Sound Control : Default)) Yes

Sound Effect (Standard) Yes

Sound Effect (Music) Yes

Sound Effect (Bass Blast) Yes

Sound Effect (Movie / DTS Virtual X) Yes / No

Sound Effect (Meridian) Yes

Tone control (User EQ) Yes

Night Mode (On/Off) Yes

Dynamic Range Control (On/Off) Yes

Auto Volume Leveler (On/Off) Yes

CONVENIENCE

Smart Phone & Tablet Remote App (iOS / Android OS) Yes

Smart Phone File Playback Yes

EZ setup (BLE) Yes

Works with the Google Assistant Yes

NSU (Network Software Update) Yes

Control with your TV Remote (Vol + ,- , Mute) Yes

Sound Sync (Bluetooth (LG TV)) Yes

Sound Sync (Optical) Yes

Automatic Power on/off (Bluetooth (LG TV)) Yes

Automatic Power on/off (Optical) Yes

A/V Sync (0-300ms) Yes

SIMPLINK Yes

Audio Return Channel (ARC) Yes

Woofer Level (-15~+6 (Step)) Yes

Mute Yes

Auto Dimmer Yes

Timer / Sleep Yes

Demo music x 2 Yes

Bluetooth Stand-By Yes

Wireless Rear Speaker Ready (1:1 Rx module Type (Wireless Kit for rear)) Yes

AUDIO FORMAT

LPCM Yes

Dolby Atmos Yes

Dolby TrueHD Yes

Dolby Digital Plus Yes

Dolby Digital Yes

DTS Digital Surround Yes

FLAC (Up to 192kHz) Yes

OGG (Up to 48kHz) Yes

WAV Yes

Apple Lossless (m4a) Yes

MP3 Yes

WMA Yes

AAC / AAC+ Streaming (Wi-Fi), Bluetooth

AIFF Yes

AUDIO STREAMING SERVICE

Chrome Cast Yes

ACCESSORIES

Remote Control Unit (Model) MA7

Remote Control Unit (Battery Size) AAA x 2

Batteries Yes

Warranty Card Yes

Optical Cable Yes

Wall Mount Bracket Yes

Cable Management Tie

DIMENSIONS OF SOUNDBAR

Height (mm) 63

Width (mm) 1443

Depth (mm) 146

DIMENSIONS OF SUBWOOFER

Height (mm) 390

Width (mm) 221

Depth (mm) 313
