CDA ECH93SS Chimney Extractor

The ECH93SS 90cm chimney extractor in stainless steel has a contemporary design which allows it to be a main focal point in any kitchen. The ECH93SS has 3 speeds with push button control and built in LED lights for great illumination.

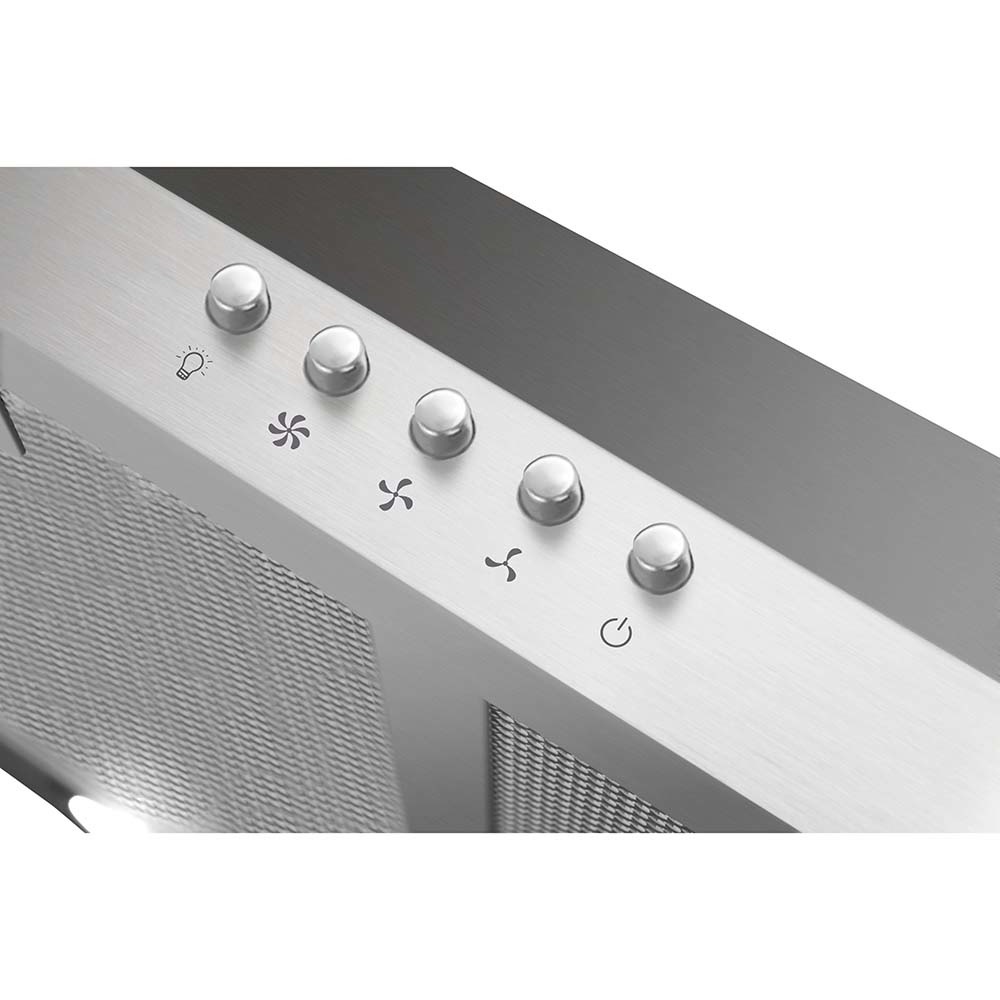

Push button

Ducted/re-circulating installation

3 speeds

Height adjustable

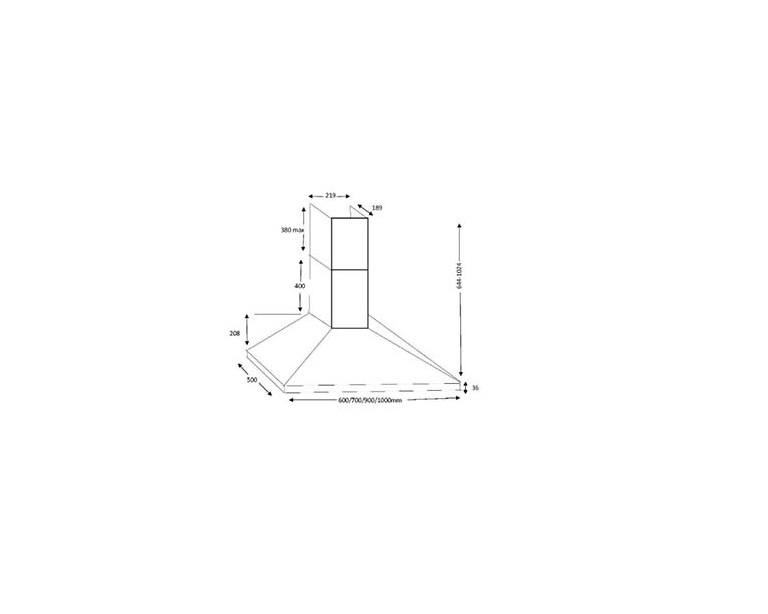

Dimensions

Height: 644-1024mm

Width: 900mm

Depth: 500mm

Technical Specification

Motor Input: 150 W

Required height over gas hobs: 700 mm (min)

Required height over electric hobs: 650 mm (min)

Outlet diameter: 150 mm

Outlet position: Top

Extraction Rates And Noise

Extraction rate at first speed: 270 m³/hr

Extraction rate at second speed: 340 m³/hr

Extraction rate at third speed: 468 m³/hr

Noise level at first speed: 53 dBA

Noise level at second speed: 60 dBA

Noise level at third speed: 64 dBA

Energy

Energy rating: C

Annual energy consumption: 67.7000 kWh

Lighting

Lighting: 2 x LED

Filters

Charcoal filter code: CHA37

Number of charcoal filters: 2

EAN:      5055833407699
